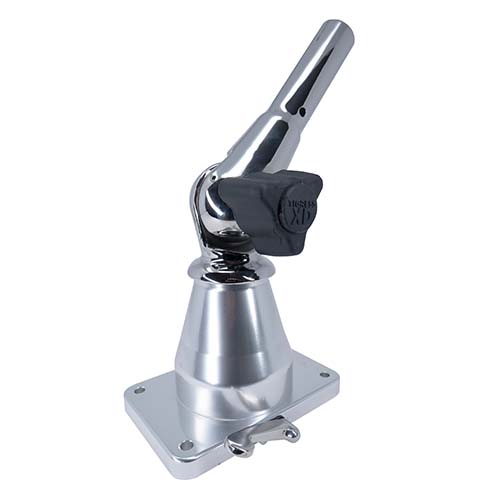

XD Bay Series Top Mount


• For use on sport fishing boats up to 40 feet
• Accepts all Tigress XD 1-1/8” butt diameter outriggers.
• 19 upper-arm angle/locking (@10 deg.) using Tigress XD
316L Stainless Steel tooth locking design with horizontal
stops for Trailering and bridges.
• Large 3-lobe UV ergonomic knob for changing and
locking the outriggers’ elevation
• 24 adjustable/locking system positions (15 degree
increments) featuring Tigress XD 316L stainless steel
locking design with HD spring return.
User friendly side operating lever.
• Large ‘XD’ aluminum 14.5mm thick baseplate with four
corner mounting.
• 5/16” through x 3.000” x 5.000” 4-bolt pattern
• Fits Tigress and other industry standard
4” x 6” mounting plates (four 5/16”
diameter fasteners)
• Extreme-duty 316L stainless steel
and anodized aluminum and fully sealed
construction with UV protection
• Ambidextrous mounting option to
accommodate the side that the tri-lobe knob
is positioned on.
• 3-Year limited warranty

XD Bay Series Top Mount
